CRYSTAL AT THE CENTER OF THE EARTH: Anisotropy of Earth's Inner Core
A Seismic Adventure
There's a giant crystal buried deep within the Earth, at the very center, more than 3,000 miles down. It may sound like the latest fantasy adventure game or a new Indiana Jones movie, but it happens to be what scientists discovered in 1995 with a sophisticated computer model of Earth's inner core. This remarkable finding, which offers plausible solutions to some perplexing geophysical puzzles, is transforming what Earth scientists think about the most remote part of our planet.
"To understand what's deep in the Earth is a great challenge," says geophysicist Lars Stixrude. "Drill holes go down only 12 kilometers, about 0.2 percent of the Earth's radius. Most of the planet is totally inaccessible to direct observation." What scientists have pieced together comes primarily from seismic data. When shock waves from earthquakes ripple through the planet, they are detected by sensitive instruments at many locations on the surface. The record of these vibrations reveals variations in their path and speed to scientists who can then draw inferences about the planet's inner structure. This work has added much knowledge over the last ten years, including a puzzling observation: Seismic waves travel faster north-south than east-west, about four seconds faster pole-to-pole than through the equator.
This finding, confirmed only within the past two years, quickly led to the conclusion that Earth's solid-iron inner core is "anisotropic" -- it has a directional quality, a texture similar to the grain in wood, that allows sound waves to go faster when they travel in a certain direction. What, exactly, is the nature of this inner-core texture? To this question, the seismic data responds with sphinx-like silence. "The problem," says Ronald Cohen of the Carnegie Institution of Washington, "is then we're stymied. We know there's some kind of structure, the data tells us that, but we don't know what it is. If we knew the sound velocities in iron at the pressure and temperature of the inner core, we could get somewhere." To remedy this lack of information, Stixrude and Cohen turned to the CRAY C90 at Pittsburgh Supercomputing Center.
- Earth's layered structure -- a relatively thin crust of mobile plates, a solid mantle with gradual overturning movement, and the outer and inner core of molten and solid iron.*
Getting to the Core
Don't believe Jules Verne. The center of the Earth is not a nice place to visit, unless you like hanging out in a blast furnace. The outer core of the Earth, about two-thirds of the way to the center, is molten iron. Deeper yet, at the inner core, the pressure is so great -- 3.5 million times surface pressure -- that iron solidifies, even though the temperature is believed to exceed 11,000 degrees Fahrenheit, hotter than the surface of the sun.
Despite rapid advances in high-pressure laboratory techniques, it's not yet possible to duplicate these conditions experimentally, and until Stixrude and Cohen's work, scientists could at best make educated guesses about iron's atom-to-atom architecture -- its crystal structure -- at the extremes that prevail in the inner core. Using a quantum-based approach called density-functional theory, Stixrude and Cohen set out to do better than an educated guess. With recent improvements in numerical techniques, density-functional theory had predicted iron's properties at low pressure with high accuracy, leading the researchers to believe that with supercomputing they could, in effect, reach 3,000 miles down into the inner core and pull out what they needed.
- Three crystal structures of iron. Yellow lines show bonds between iron atoms.*
Rethinking Inner Earth
On Earth's surface, iron comes in three flavors, standard crystalline forms known to scientists as body-centered cubic (bcc), face-centered cubic (fcc) and hexagonal close-packed (hcp). Working with these three structures as their only input, Stixrude and Cohen carried out an extensive study -- more than 200 separate calculations over two years -- to determine iron's quantum-mechanical properties over a range of high pressures. "Without access to the C90," says Stixrude, "this work would have taken so long it wouldn't have been done."
Prevalent opinion before these calculations held that iron's crystal structure in the inner core was bcc. To the contrary, the calculations showed, bcc iron is unstable at high pressure and not likely to exist in the inner core. For the other two candidates, fcc and hcp, Stixrude and Cohen found that both can exist at high pressure and both would be directional (anisotropic) in how they transmit sound. Hcp iron, however, gives a better fit with the seismic data. All this was new information, but even more surprising was this: To fit the observed anisotropy, the grain-like texture of the inner core had to be much more pronounced than previously thought.
"Hexagonal crystals have a unique directionality," says Stixrude, "which must be aligned and oriented with Earth's spin axis for every crystal in the inner core." This led Stixrude and Cohen to try a computational experiment. If all the crystals must point in the same direction, why not one big crystal? The results, published in Science, offer the simplest, most convincing explanation yet put forward for the observed seismic data and have stirred new thinking about the inner core.

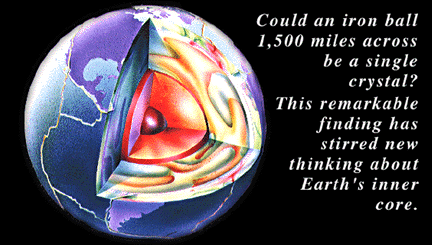

Could an iron ball 1,500 miles across be a single crystal? Unheard of until this work, the idea has prompted realization that the temperature-pressure extremes of the inner core offer ideal conditions for crystal growth. Several high-pressure laboratories have experiments planned to test these results. A strongly oriented inner core could also explain anomalies of Earth's magnetic field, such as tilted field lines near the equator. "To do these esoteric quantum calculations," says Stixrude, "solutions which you can get only with a supercomputer, and get results you can compare directly with messy observations of nature and help explain them -- this has been very exciting."
Researchers: Ronald Cohen and Lars Stixrude, Carnegie Institution of Washington.
Hardware: CRAY C90
Software: User-developed code
Keywords: Earth, inner core, geophysics, seismic waves, anisotropic, iron, crystal structure, body-centered cubic, face-centered cubic, hexagonal close-packed, quantum mechanics.
